Montreal Air Pollution Analysis

Montreal Air Pollution Analysis #

December 10, 2023

Being recently introduced to osmnx, I have continued to tinker around and play with it to see if I could do my own amateur urban analysis. Previously, I had attempted to model the metro of Paris, and then perform a shortest path search on two random stations within.

This time, I have chosen to target Montreal, and while I had initially wanted to perform greenspace analysis (due to my interest in the Ruelles Vertes), I had quickly found data for air pollution therein. This data looked pretty comprehensive to me (foreshadowing), so I figured that it would be interesting to consider air pollution across Montreal. Additionally, I’d be able to use some of my osmnx knowledge to plot some information over it to possibly reveal more information.

I used this dataset from Montreal government’s website providing data on the city itself (Montréal Données Ouvertes), which provided historical data on Montreal’s air pollution. Let’s begin by trying to understand this data.

aq = pd.read_csv('rsqa-indice-qualite-air-2019-2021.csv')
aq.head()
stationId polluant valeur date heure
0 17 CO 1 2019-02-19 18
1 17 O3 20 2019-02-19 18
2 17 NO2 3 2019-02-19 18
3 17 PM 9 2019-02-19 18
4 80 SO2 1 2019-02-19 18

stationId refers to the id of the station in which the measurement was taken at.
polluant refers to the pollutant the measure refers to.
valeur is the quantified amount of the pollutant. According to Montreal’s data page, the data ranges as follows:

  • 1-25 : Good
  • 26-50 : Acceptable
  • 50 > : Bad

date is the date the measurement was taken.
heure is the hour the measurement was taken, in 24h.

At first, I was unaware of what the stationId exactly refers to. However, after look around Montréal Données Ouvertes a bit more, I managed to find another useful dataset that would explain this better:

stations = pd.read_csv('liste-des-stations-rsqa.csv')
stations.head()
numero_station SNPA statut nom adresse arrondissement_ville latitude longitude X Y secteur_id secteur_nom hauteur
0 1 50102 fermé Jardin Botanique Jardin Botanique, Montréal Rosemont-La Petite-Patrie 45.5622 -73.5718 299196 5.04692e+06 1 Centre-Ville 4
1 3 50103 ouvert Saint-Jean-Baptiste 1050 A, St-Jean-Baptiste Rivière-des-Prairies 45.641 -73.4997 304825 5.05568e+06 4 Est 4
2 6 50124 ouvert Anjou 7650 rue Châteauneuf Anjou 45.6028 -73.5589 300207 5.05144e+06 4 Est 12

This has been shortened further for the sake of length

Here, we can see that the numero_station would relate to our stationId, and thus now we know it correlates to a particular station somewhere in Montreal where the data was obtained or calculated. So, for example, the station with stationId=17 was found to be Caserne 17 at 4240 rue Charleroi.

Now that our data has been established and related, we need a way to project it onto an actual map of Montreal. In this case, I will be used geopandas and a shapefile of Montreal, which just outlines the shape of a geographic area that we can graph and project information onto:

import geopandas as gpd
import pandas as pd
from shapely.geometry import Point
from matplotlib.colors import TwoSlopeNorm
montreal_shape = gpd.read_file('montreal_shapefile.geojson')

fig,ax = plt.subplots()
montreal_shape.plot(ax=ax)

stations = pd.read_csv('liste-des-stations-rsqa.csv')
stations_latlong = [Point(xy) for xy in zip(stations['longitude'], stations['latitude'])]

montreal_stations_geo = gpd.GeoDataFrame(geometry=stations_latlong)
montreal_stations_geo.plot(ax=ax, markersize=20, color='red')

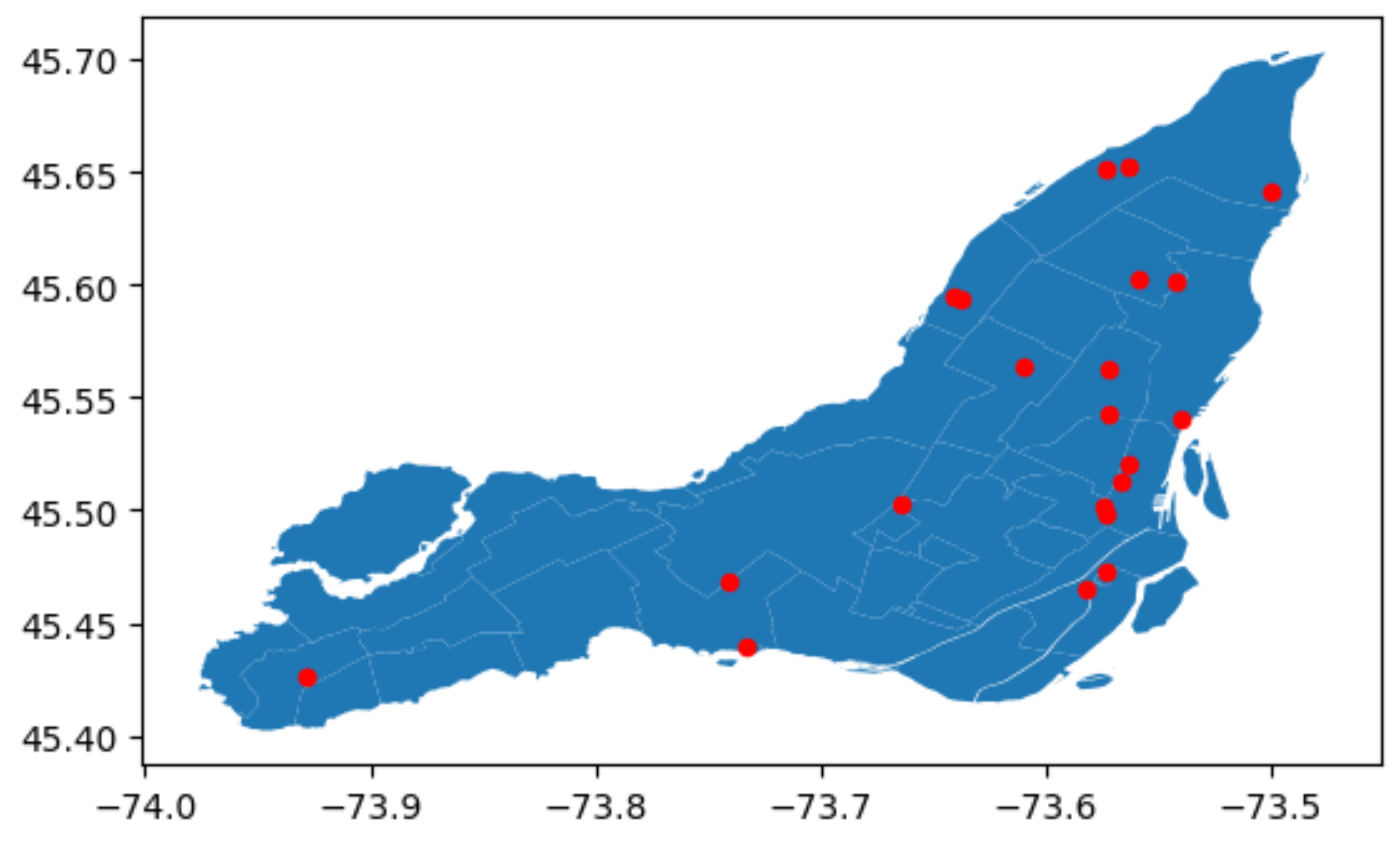

image of projection of station locations in Monreal

Projection of station locations onto Montreal

Unfortunately, for some reason, projecting the locations of the stations onto the map itself seems to distort it a bit? We’ll deal with that in our final projection and display later.

Doubly unfortunately, these stations are clustered in a particular subset of the arrondissements of Montreal. This means that we will not get at all a very fully defined graph, but one that will rather have information based upon a particular subset of the arrondissements. I don’t really have an idea of how to deal with this, so I’ll let it live, at least for now.

Otherwise, the data is historic over a few years and over many days, so, we will first perform some aggregate computation on the amount of pollution per pollutant per station in the city:

aq = pd.read_csv('rsqa-indice-qualite-air-2019-2021.csv')
aq_stations = aq['stationId'].unique()
aq_poll_types = aq['polluant'].unique()

avg_res_lst = []
for t in aq_poll_types:
  avg_res = {}
  aq_t = aq[aq['polluant'] == t]
  for s in aq_stations:
    all_val = aq_t[aq_t['stationId'] == s]
    if len(all_val) > 0:
      avg_val = sum(all_val['valeur']) / len(all_val['valeur'])
      avg_res[s] = avg_val
  avg_res_lst.append(avg_res)

stations = pd.read_csv('liste-des-stations-rsqa.csv')
stations = stations.set_index('numero_station')

for i in range(0, len(aq_poll_types)):
  stations[aq_poll_types[i]] = avg_res_lst[i]

stations.head()
numero_station SNPA statut nom adresse arrondissement_ville latitude longitude X Y secteur_id secteur_nom hauteur CO O3 NO2 PM SO2
1 50102 fermé Jardin Botanique Jardin Botanique, Montréal Rosemont-La Petite-Patrie 45.5622 -73.5718 299196 5.04692e+06 1 Centre-Ville 4 nan nan nan nan nan
3 50103 ouvert Saint-Jean-Baptiste 1050 A, St-Jean-Baptiste Rivière-des-Prairies 45.641 -73.4997 304825 5.05568e+06 4 Est 4 nan 15.7134 2.27282 11.279 1.29435
6 50124 ouvert Anjou 7650 rue Châteauneuf Anjou 45.6028 -73.5589 300207 5.05144e+06 4 Est 12 nan 14.1824 2.89384 11.4153 0.992231

This table has been shortened for the sake of length

Hmm, I don’t like how a lot of the stations lack air pollution data. I did foreshadow to this earlier. Regardless, there is still overlap with some arrondissements having multiple groupings of data. I just pruned this manually to get a unique subset of data:

stations.arrondissement_ville = stations.arrondissement_ville.str.lower()
aq_arron = stations['arrondissement_ville'].unique()
stations_drp = stations.drop([1,7,13,29,12,43,49,55,59,61,68], axis=0)

Which now we can finally merge with our shapefile to get our final datatable:

mrl = pd.read_csv('montreal_shapefile.csv')
mrl.district = mrl.district.str.lower()
mrl_stations = mrl.merge(stations_drp, left_on="district", right_on="arrondissement_ville", how="left")
mrl_stations.head()
cartodb_id district type SNPA statut nom adresse arrondissement_ville latitude longitude X Y secteur_id secteur_nom hauteur CO O3 NO2 PM SO2
0 1 ahuntsic-cartierville BOROUGH nan nan nan nan nan nan nan nan nan nan nan nan nan nan nan nan nan
1 11 lachine BOROUGH nan nan nan nan nan nan nan nan nan nan nan nan nan nan nan nan nan
2 12 l’île-bizard–sainte-geneviève BOROUGH nan nan nan nan nan nan nan nan nan nan nan nan nan nan nan nan nan
3 20 pierrefonds-roxboro BOROUGH nan nan nan nan nan nan nan nan nan nan nan nan nan nan nan nan nan
4 23 rivière-des-prairies BOROUGH 50103 ouvert Saint-Jean-Baptiste 1050 A, St-Jean-Baptiste rivière-des-prairies 45.641 -73.4997 304825 5.05568e+06 4 Est 4 nan 15.7134 2.27282 11.279 1.29435

I have dropped the column that contains the geometry of Montreal itself because that is just a large string of numbers. Anyhow, I don’t like the immense amount of NaNs in the data. But, I’ll just pretend that it doesn’t matter and move on. I am here to mostly learn about how to write out the code to do this sort of thing anyhow!

Regardless, the next thing we can do is actually visualize all of our data itself across each of the pollutant types onto Montreal.

montreal_shape = gpd.read_file('montreal_shapefile.geojson')

montreal_shape.district = mrl.district
mrl_stations_shp = montreal_shape.merge(stations_drp, left_on="district", right_on="arrondissement_ville", how="left")

norm = TwoSlopeNorm(vmin=1, vcenter=25, vmax=50)
cbar = plt.cm.ScalarMappable(norm=norm, cmap='OrRd')
fig.colorbar(cbar, ax=ax)

fig,((ax,ax1),(ax2,ax3),(ax4,ax5)) = plt.subplots(nrows=3, ncols=2, figsize=(15,14))
mrl_stations_shp.plot(column='CO', legend=True, cmap='OrRd', norm=norm, missing_kwds={
    "color": "lightgrey",
    "edgecolor": "blue",
    "hatch": "///",
    "label": "Missing Arrondissements"
}, ax=ax)
ax.set_axis_off()
...

The above code shows the example for just one of the plots, the rest follow the same methadology, just changing the particular pollutant.

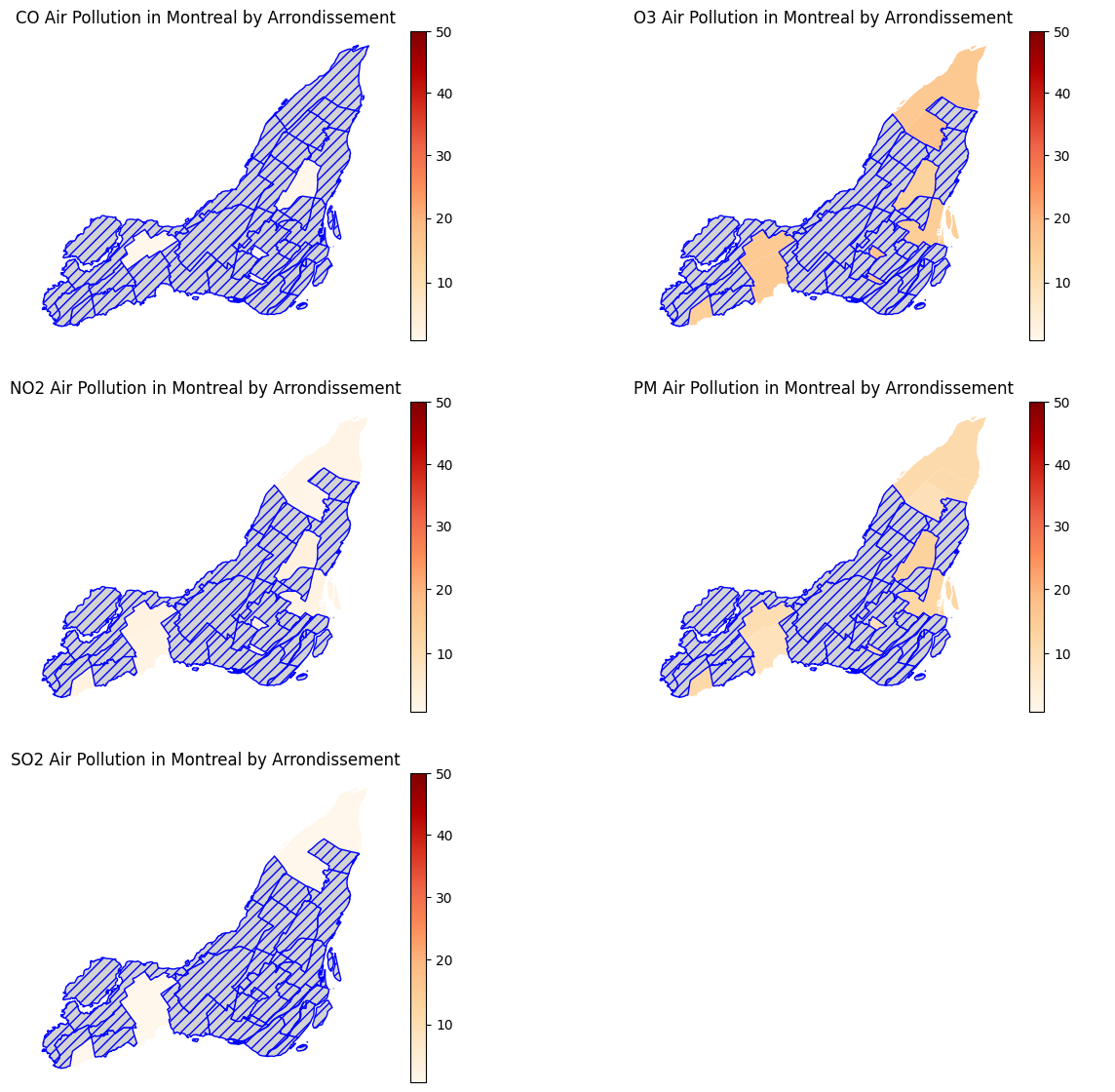

chart matrix of air projection in Monreal

Air Pollution in Montreal by Pollutant Type

Yeah, a lot of unknown data there. Interestingly, pollution of PM (particular matter) appears to be the worst here, whereas the rest of the pollution isn’t too bad at all, at least as far as I can tell. Everything here appears to fall witin the 1-25 range anyhow, which is defined by the city of Montreal as the range for air pollution to be at a “good” level.

Hmm, now we can consider the osmnx factor. Particularly, I want to see which areas in Montreal are zoned for industral landuse, and then project that onto the air pollution. First, let’s display the areas zoned for industrial use:

montreal = "Montreal, Quebec, Canada"
area = ox.geocode_to_gdf(montreal)

constr_tags = {'landuse':['industrial']}

parks = ox.features_from_place(montreal, constr_tags)

fig, ax = plt.subplots(figsize=(10,6))
area.plot(ax=ax, facecolor='white', zorder=0)
edges.plot(ax=ax, linewidth=0.5, edgecolor='dimgrey', zorder=1)
parks.plot(ax=ax, color='#fa7474', alpha=0.7, markersize=10, zorder=3)
plt.axis('off')

Industrial Zoning in Montreal

Industrial Zoning in Montreal

And now that we have that! We can just overlay the industrial zoning parts onto one of our geopandas graphs from earlier. In this case, I’ll just settle on the one that shows the particulate matter pollution as that was the most prevalent one:

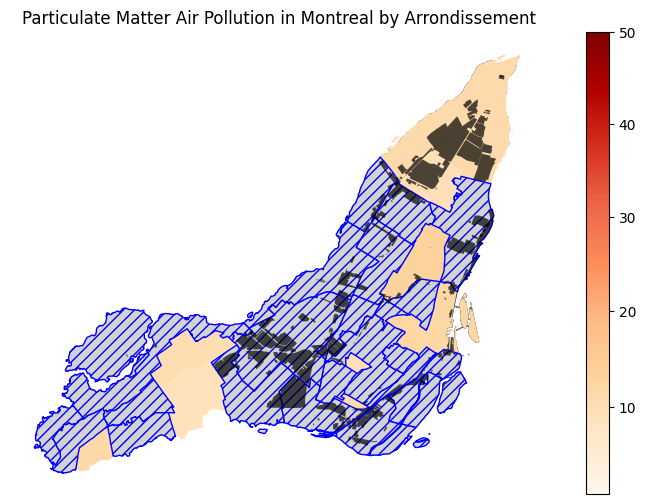

Air Pollution vs. Zoning in Montreal

Particular Matter Air Pollution vs. Industrial Zoning in Montreal

And there we are! We can see that there is a reasonable amount of areas zoned for industrial use in the city, and we can relate that to areas of air pollution. This would be a lot nicer if we had more rich data on the air pollution in the particular arrondissements of Montreal, but I think this is reasonable as a teaching tool, at least for me.
